High quality and high temperature resistance bellow in piping

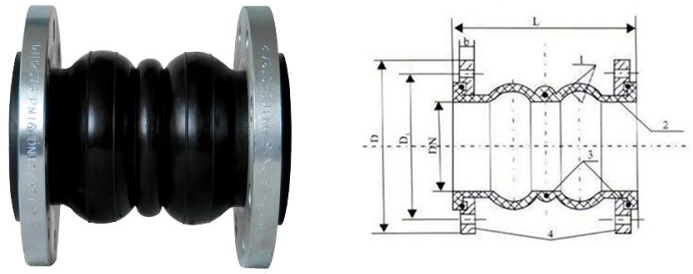

The bellow in piping is composed of rubber body and flange. The rubber material of bellow in piping is NR / NBR / EPDM / PTFE. The rubber materials of the bellow in piping are suitable for different media, such as the EPDM with weak acid and weak alkali. Flange material can be galvanized carbon steel, painted ductile iron, stainless steel 304 / 316, etc.
Bellow in piping Specifications
1. Bellow in piping alias:flexible rubber joint,rubber joint,rubber soft connection,shock absorber,flange soft. connection,flexible rubber joint,r
2. Bellow in piping specification:DN20mm-DN3600mm.
3. Bellow in piping pressure:0.6-2.5MPa.
4. Damping grade of bellow in piping: A level, shock absorption is very high.
5. Bellow in piping certification:ISO9001:2008,CE.
6. Bellow in piping of application:acid,alkali,corrosion,oil,hot and cold water,compressed natural gas,compressed air.
Part of bellow in piping technical data
|
Main data of bellow in piping |
|||||||
| Nominal diameter(DN) | Length | Hole diameter quantitvd | Axial displacement(mm) | Horizontal displacement | Deflexion angle | ||
| mm | inch | mm |
|
Extension | Compression | mm | (a1+a2)° |
| 40 | 1 1/2 | 165 | 18-4 | 30 | 50 | 45 | 15° |
| 50 | 2 | 165 | 18-4 | 30 | 50 | 45 | 15° |
| 65 | 2 1/2 | 175 | 18-4 | 30 | 50 | 45 | 15° |
| 80 | 3 | 175 | 18-8 | 35 | 50 | 45 | 15° |
| 100 | 4 | 225 | 18-8 | 35 | 50 | 40 | 15° |
| 125 | 5 | 225 | 18-8 | 35 | 50 | 40 | 15° |
| 150 | 6 | 225 | 22-8 | 35 | 50 | 40 | 15° |
| 200 | 8 | 325 | 22-8 | 35 | 60 | 40 | 15° |
| 250 | 10 | 325 | 22-12 | 35 | 60 | 35 | 15° |
| 300 | 12 | 325 | 22-12 | 35 | 60 | 35 | 15° |
| 350 | 14 | 330 | 22-16 | 35 | 60 | 35 | 15° |
| 400 | 16 | 330 | 26-16 | 35 | 60 | 35 | 15° |
| 450 | 18 | 330 | 26-20 | 35 | 60 | 35 | 15° |
| 500 | 20 | 350 | 26-20 | 35 | 60 | 35 | 15° |
| 600 | 24 | 350 | 30-20 | 35 | 60 | 35 | 15° |
| 700 | 28 | 350 | 30-24 | 35 | 60 | 35 | 30° |
| 800 | 32 | 400 | 30-24 | 35 | 60 | 35 | 30° |
Note: 1. The special requirements of bellow in piping can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of bellow in piping can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. when the bellow in piping of DN200 and above is used for suspended water supply, the pipeline must have fixed support or fixed support, otherwise bellow in piping should be installed with anti falling device.

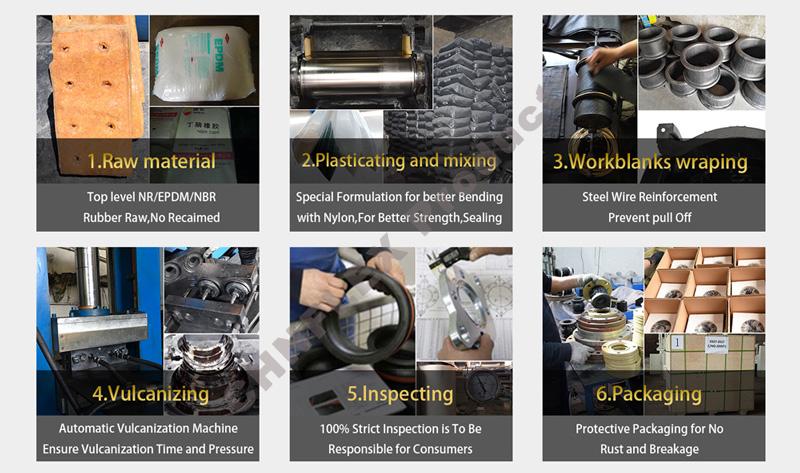

Bellow in piping production Flow
Do you know how is a bellow in piping made?Let's see with JINGNING.
Bellow in piping advantage
1. Factory price of bellow in piping.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Bellow in piping mold has a variety of specifications, support customization, OEM.
5. Provide free samples of bellow in piping.
6. Bellow in piping are in large stock.
Bellow in piping Application
Because of its good comprehensive performance,bellow in piping is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.
Bellow in piping OEM&ODM
How to choose the appropriate bellow in piping? It is necessary to know the compatibility of the medium and the selected material, the range of full temperature, full pressure and full vacuum, the amount of movement required and the size between the pipe flanges. With this information, Jingning application engineers can help determine the ideal bellow in piping for any application.
Note:The special requirements of bellow in piping can be customized.
